    Advanced Teleop Package Frontend

    The core tutorial used Radar first because it can run as a deployment without installing an application-specific browser frontend. Teleop is the next layer. It shows how a managed package can carry its own frontend and command its application subsystem instance through the runtime-managed proxy.

    Neither browser surface is a native Librux subsystem. Both stay outside the native runtime boundary and connect through librux-control.

    world viewer -> /api/v1/ws/events      -> observe app events
world viewer -> simulator API   -> read/reset tutorial world state
teleop UI    -> package proxy   -> command app.cleaner.teleop

    Native Event, Control, Procedure, and Operation traffic stays inside the Librux host. Browser UIs only see host-control and managed package frontend facades.

    1. Open The World Viewer

    The cleaner arena is a static world viewer under tutorials/frontend.

    The important files are these.

    File Role
    index.html page layout and canvas
    styles.css arena styling
    app.js app-event WebSocket client and canvas drawing

    run_sim_world.py serves this directory with Python's static HTTP server. It does not start robot subsystems.

    2. Read The World Viewer Facade Client

    Open the browser code.

    nano tutorials/frontend/app.js

    Near the top of the file, the frontend defines the app event topic.

    const APP_TOPIC = 'robot_cleaner/app/status';

    It opens two WebSockets.

    /api/v1/ws/events
/api/v1/ws/control

    /api/v1/ws/events receives application status. /api/v1/ws/control is still available for host-control automation, but the normal world viewer does not use it for teleop commands. World state, reset, and trash spawn use the provided simulator HTTP API; those are not robot gateway endpoints.

    3. Prepare The Platform For Teleop

    Stop the radar deployment if it is still running.

    librux deploy down tutorials/deployments/radar.deployment.yaml

    Start the reusable platform without an application.

    librux deploy up tutorials/deployments/stages/robot.deployment.yaml

    Open this URL.

    http://127.0.0.1:8091/

    The page starts simulator polling immediately and attempts to attach to the runtime event stream automatically. Before a runtime connection is available, the browser remains useful as a simulator view. It shows world online when the simulator API is reachable and upgrades to runtime online when the runtime event facade is reachable.

    Robot cleaner before connecting

    After the automatic runtime connection is online, the world viewer also shows application status events. At this point, no teleop app is running yet, so the status may remain idle.

    Robot cleaner connected

    4. Install And Launch Teleop

    Teleoperation uses an installed managed package instance as the command target, and the controls are packaged with the teleop application subsystem.

    If the teleop package is not installed yet, build an archive and install it from the Web Console Packages page.

    librux package build tutorials/subsystems/app.cleaner.teleop \
  --out /tmp/librux-teleop-app \
  --force
tar -czf /tmp/librux-teleop-app.tgz -C /tmp/librux-teleop-app .

    Then go to Runtime, choose Launch package instance, select tutorial.robot_cleaner.teleop, and launch it with this instance id.

    app.cleaner.teleop

    Open the package frontend from Runtime, or use the instance URL.

    http://127.0.0.1:8001/api/v1/packages/tutorial.robot_cleaner.teleop/ui/?instance=app.cleaner.teleop&context=/api/v1/packages/tutorial.robot_cleaner.teleop/instances/app.cleaner.teleop/context

    The teleop frontend is the operator control surface. It can be placed beside the world viewer and shrinks to a narrow browser column for split-screen testing.

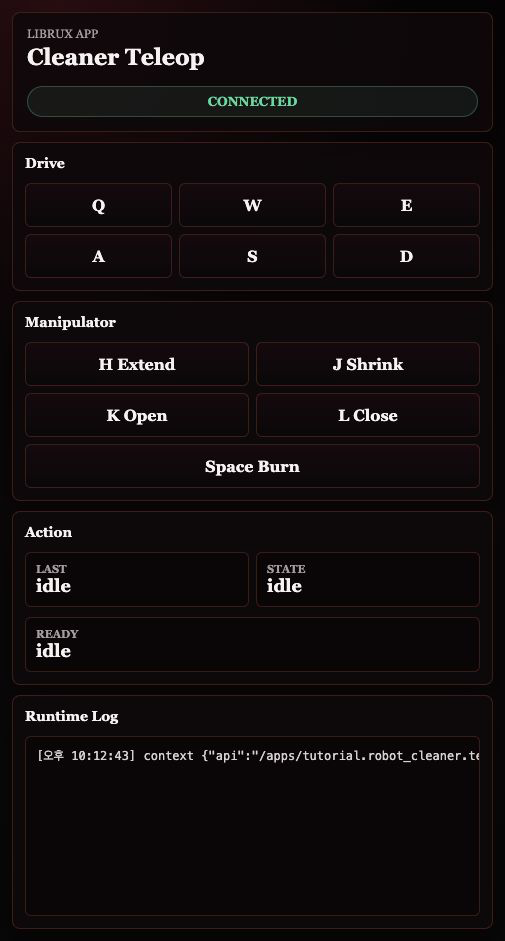

    Robot cleaner teleop frontend

    5. Command Through The App Proxy

    When the operator presses a button or key, the package frontend calls the managed same-origin package proxy. The proxy forwards the request to the app's brokered loopback frontend API. For teleop, the app then calls bound robot capabilities.

    teleop package frontend
  -> /api/v1/packages/tutorial.robot_cleaner.teleop/instances/app.cleaner.teleop/api/command
  -> app.cleaner.teleop
  -> compound.cleaner
  -> component.mobile / component.manipulation / component.gripper
  -> gateway.device_gateway

    This keeps the browser from bypassing the application policy.

    Movement keys in the teleop package frontend are hold-to-drive. The browser keeps refreshing a short-lived velocity command while the key or button is held, and sends stop when it is released. Movement is robot-relative. After rotating the robot, W drives forward in the direction the robot is facing.

    Key Action
    W or Up drive forward in the robot body frame
    S or Down drive backward in the robot body frame
    A or Left strafe left in the robot body frame
    D or Right strafe right in the robot body frame
    Q rotate counter-clockwise
    E rotate clockwise
    H extend the manipulator
    J shrink the manipulator
    K open the gripper
    L close the gripper
    Space burn trash stored in the robot body

    Manual collection is intentionally step-by-step.

    1. Open the gripper with K.
    2. Extend the manipulator with H toward a piece of trash.
    3. Close the gripper with L.
    4. Shrink the manipulator with J to bring the trash into the robot body.
    5. Press Space to burn the stored payload.

    If the gripper is closed while extending, the arm pushes loose trash away. If the gripper is open while extending, the trash is not pushed; closing the gripper near the arm tip grabs it. If you shrink without a closed gripper hold, the trash stays in the arena. If you do not burn stored trash, it remains as payload on the robot and can accumulate.

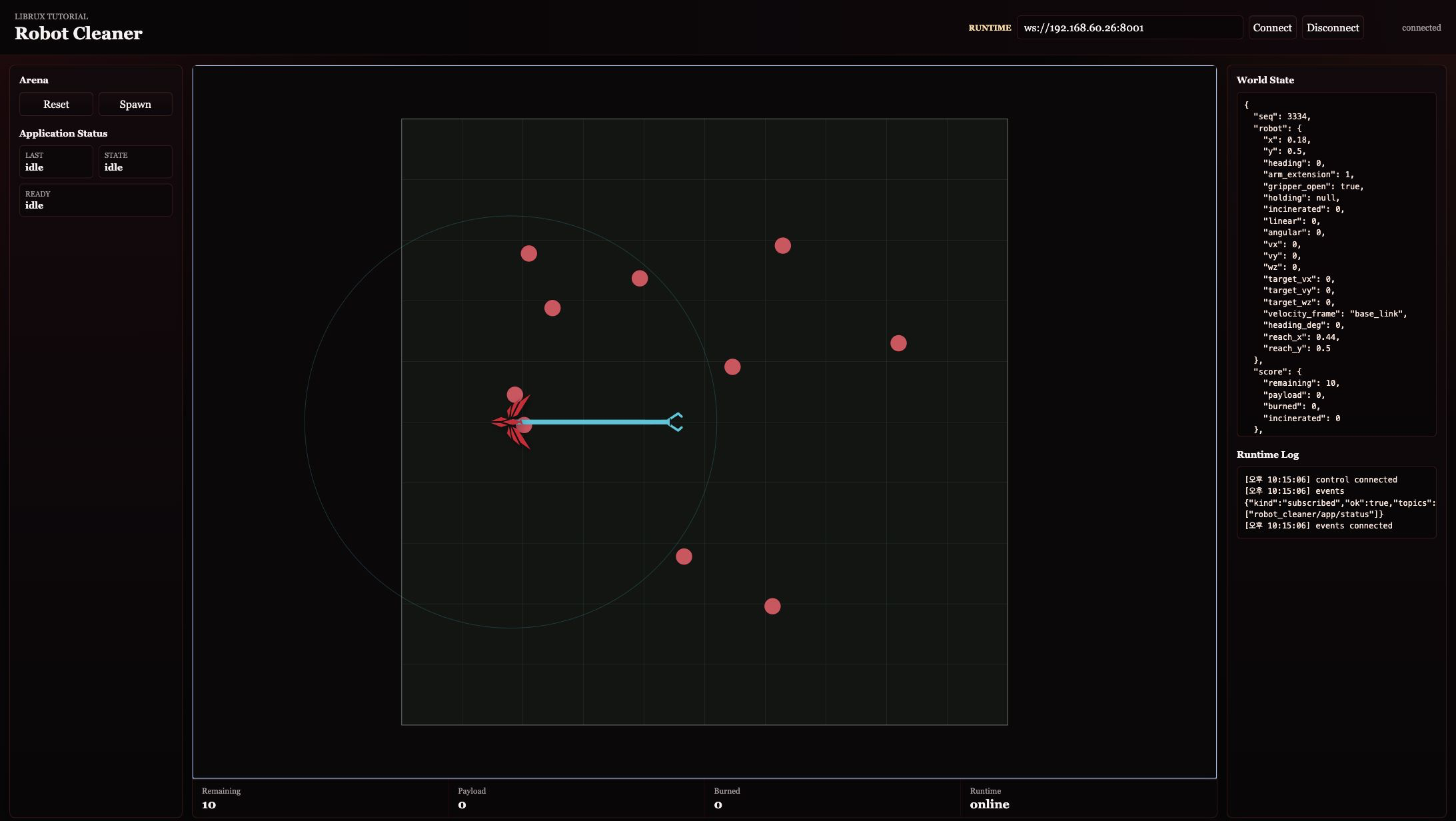

    Robot cleaner teleop manual manipulation

    The teleop package frontend shows the latest command result. Payload in the world viewer bottom status strip is the number of trash items currently stored in the robot body and not yet burned.

    6. Browser Defaults For Remote Runs

    The frontend defaults to the page host for both runtime connections.

    • WebSocket control backend - ws://<page-host>:8001
    • simulator API - http://<page-host>:8092

    On a local install, open.

    http://127.0.0.1:8091/

    For a remote runtime host, bind the tutorial world to all interfaces.

    python3 tutorials/run_sim_world.py --host 0.0.0.0

    Then start the platform deployment on that host.

    librux deploy up tutorials/deployments/stages/robot.deployment.yaml

    Then open this URL.

    http://<runtime-host>:8091/

    Reload the world viewer after starting the platform and teleop package instance. Use Reconnect only after restarting librux-control or changing the host/port path. The world viewer does not start or switch applications. Use the teleop package frontend only when the teleop package instance is running. Explicit ws, sim, and connect query parameters are intended for automated checks or unusual proxy layouts, not the normal tutorial path.

    Cleaner Robot Browser Graph

    flowchart LR Browser["Browser world viewer"] TeleopUI["Teleop package frontend"] Facade["Host-control WebSocket facade"] PackageProxy["Managed package frontend proxy"] Simulator["Provided simulator API"] App["Application subsystem"] Gateway["gateway.device_gateway"] Browser -->|"HTTP state/reset/spawn"| Simulator App -->|"robot_cleaner/app/status"| Facade Facade -->|"/api/v1/ws/events"| Browser TeleopUI --> PackageProxy PackageProxy --> App App --> Gateway Gateway --> Simulator

    The world viewer is a visualization surface. The teleop package frontend is an operator surface, but it still does not bypass the application subsystem.
